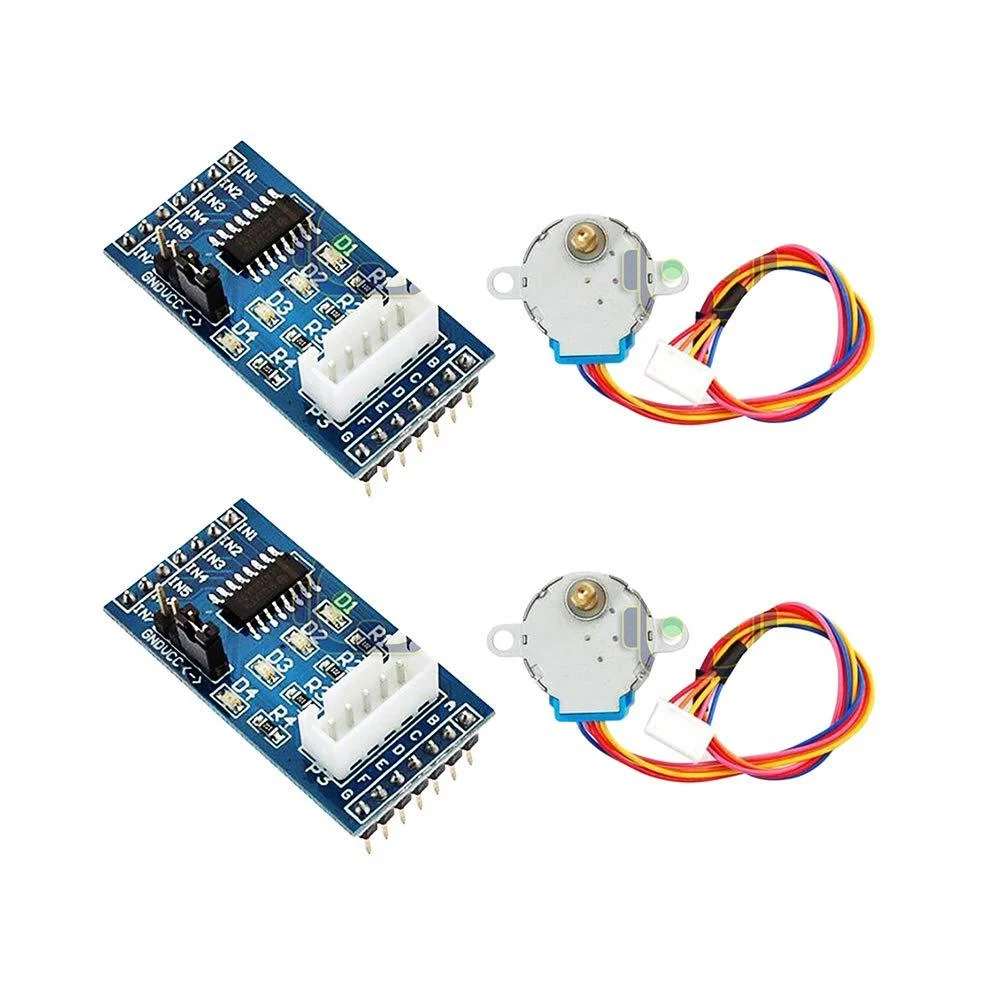

DEVMO 2set 28BYJ-48 Geared Stepper Motor DC 5V + ULN2003 Driver Test Module Board Compatible with Ar-duino

Description

– Brand new with high quality- Rated Voltage: DC5V-12V, 4-Phase- Reduction Ratio: 1/64- Step Torque Angle: 5.625 /64- DC Resistance: 200w+- 7% (25 C)- Insulation Resistance:>10Mw (500V)- Insulation Grade: A- No-load Pull in Frequency:>600Hz- No-load Pull out Frequency:>1000Hz- Pull in Torque:>34.3mN.m(120Hz)- Detent Torque:>34.3mN.m- Temperature Rise:<40K(120Hz)- Noise:<40dB (120Hz, No load, 10cm)- Board Size: Approx. 40X21 mm- On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct
?Package Includes: 2set Control boards & Stepper Motor. ?On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct. ?5V power supply.4-way signal indicator. ?Chip all the pins already leads for easy connection to use. ?5V Stepper Motor Driver Board Module,ULN2003 motor driver chip.
Package Type: Standard Packaging. Number of Items: 2. Unit Count: 1 Count. Brand: DEVMO. Best Sellers Rank: Telescope Motor Drives. : B07RBPVFM5. Manufacturer: DEVMO. Date First Available: April 29, 2019. Item model number: give-954. Package Dimensions: 3.07 x 2.99 x 1.65 inches; 3.53 Ounces.
